RF transmitter and receiver modules

View

These RF Products are ideal for short-range wireless remote control applications where cost is a primary concern. These modules require no external RF components except for the antenna. They generate virtually no emissions, making FCC and ETSI approvals easy.

AM 434MHZ or 418MHZ Transmitter Module

  Modulation: ASK

Specification

Symbol

Parameter

Conditions

Min

Typ

Max

Unit

Vcc

Operating supply voltage



2.0

-

12

V

Icc

Peak Current (2V)



-

-

1.64

mA

Icc

Peak Current(12V)

-

-

19.4

mA

Vin

Input High Voltage

IData=100Ua (High)

Vcc-0.5

-

Vcc

V

Vii

Input Low Voltage

IData=0Ua (Low)

-

-

0.3

V

Fo

Absolute Frequency



433.72

433.92

434.12

MHz



417.8

418

418.2

MHz

FO

Relative To 433.92MHz





+/-150

+/-200

KHz

Po

RF Out Power Into 50Ω

VCC 9V-12V

-

16

-

dBm



VCC 5V-6V



 14





Modulation Bandwidth

External Encoding

512

4.8K

200K

bps

Tr

Modulation Rise Time

-

-

100

uS

Tf

Modulation Fall Time

-

-

100

uS

Notes : ( Case Temperature = +25C+/-2C Test Load Impedance = 50 Ω )

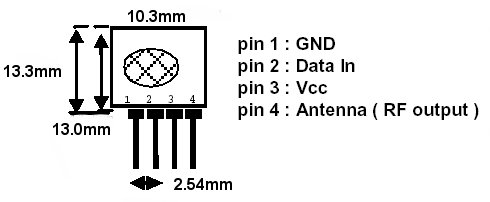

Mechanical Dimensions and Pin Description

The WZ_T434 or WZ_T418 transmitter  output is up to 8mW  the range is approximately 200 foot indoor,  The WZ-T4343 transmitter is based on SAW resonator can operate from 2 to 12 Volts-DC

When  operation voltage at 5V - 6V, the emission is about 14dBm. While the operation voltage at  9V to 12V, the emission is about 16dBm



AM 434MHZ or 418MHZ Receiver Module



Specification

Vcc

Operating supply voltage



4.5

5

5.5

 V

ITot   Operating Current

3.5

4.5

mA

V Data

Data Out

Data = +200 uA ( High )I

Vcc-0.5

-

Vcc

V

I Data = -10 uA ( Low )

-

-

0.3

V

Electrical Characteristics

Characteristics

SYM

Min

Typ

Max

Unit

Operation Radio Frequency

FC

300 - 434

MHz

Sensitivity

Pref





-106

dBm

Channel Width



+-500





KHz

Noise equivalent BW

NEB



4

5

KHz

Baseboard data rate







3

Kb/s

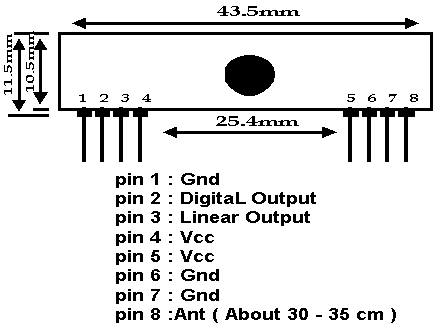

Mechanical Dimensions and Pin Description

The receiver WZ-R434 and WZ-R418 has a sensitivity of 3uV. Operating voltage is from 4.5 to 5.5 volts-DC, and has both linear and digital outputs. For maximum range, we recommend antenna length to be 1/4 wave of the frequency, That means, for 433.92Mhz, the antenna length is approximately 17cm long . The typical sensitivity is -103dbm and the typical current consumption is 3.5mA for 5V operation voltage.



Pricing  order your modules today!

Item Part # Price/ea
AM 433.92 MHz Transmitter Module WZ-T434 $10.00
AM 433.92 MHz Receiver Module WZ-R434 $10.00
AM 418 MHz Transmitter Module WZ-T418 $10.00
AM 418 MHz Receiver Module WZ-R418 $10.00

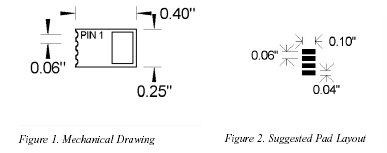

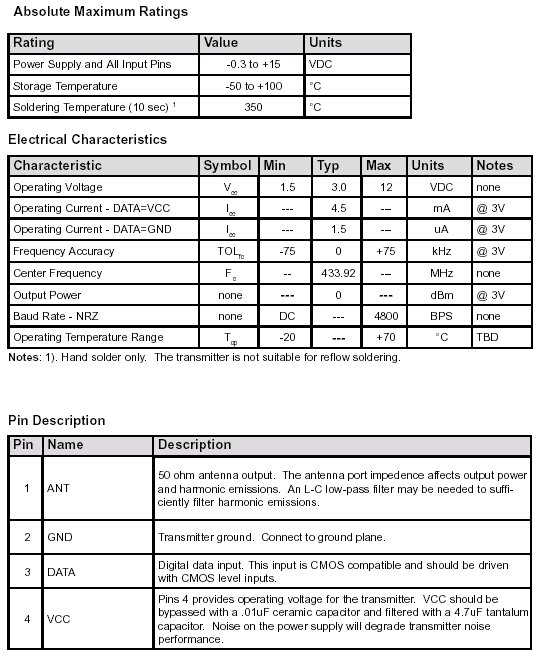

Low Cost RCT-433 Surface Mount SAW-Stabilized OOK Wireless Remote Control Transmitter

Applications
  • Remote Keyless Entry
  • Lighting Controls
  • Wireless Security Systems
  • RFID

WZ-433AS series RF transmitter modules offer a cost effective, high-performance solution for remote control type applications. The transmitters are very small (.25" x .4"), have a wide operating voltage range (2-12V), and can deliver 0dBm output power into a 50 ohm load at 3V. SAW-stabilized design guarantees that the center frequency is accurate to ±40kHz (@3V), making it suitable for use with any ASK/OOK receiver available.

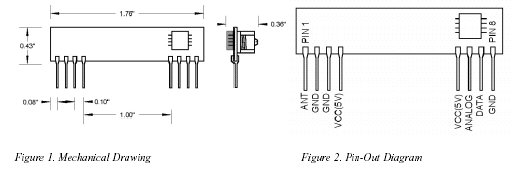

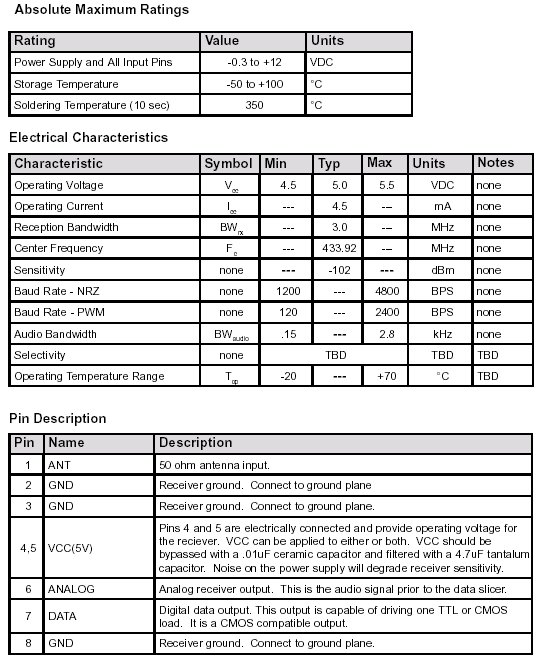

Low Cost RCT-433 Super-Regen ASK/OOK Remote Control Receiver

The WZ-433RP series RF receiver modules offer an extremely low cost solution for remote control type applications. The receivers are compatible with almost any ASK or OOK data transmitter and can receive legally transmitted signals from distances as far away as 300 feet. The receivers operate at 5V and draw only 4.5mA.



Pricing  order your modules today!

Item Part # Price/ea
RCT-433 MHz Transmitter Module WZ-RCT433 $9.00
RCR-433 MHz Receiver Module WZ-RCR433 $9.00



These RF modules do not require licensing to operate ( 260-470 Mhz ISM band ). They are not FCC approved, but have been designed to comply with FCC Part 15 Rules and Regulations.

For further information of FCC, You can visit the FCC website at:
http://www.fcc.gov

  • 315Mhz is commonly used for garage gate openers, keyless security system or car alarm applications.

  • 418Mhz  is used for low data rate telemetry or radio command system in Canada, USA and UK.

  • 433.92Mhz is commonly used throughout Europe and North America, many kinds of commercial applications are using this frequency.
